神戸大学 大学院システム情報学研究科 計算科学専攻 陰山 聡
/tmp/100722にある。
/tmp/100722/thermal_diffusion_checker.f90に置いた。
【目次】
subroutine cpu_time(time) real(SP), intent(out) :: time !プログラムの始まりから計測したCPU時間（秒）
module stopwatch
use constants
implicit none
private
public :: stopwatch__print, stopwatch__strt, stopwatch__stop
integer, parameter :: max_watch_id = 100
integer :: used_watch_id_max=-1
real(SP), dimension(0:max_watch_id) :: time_start_saved, time_total
contains
subroutine stopwatch__print
integer :: id
do id = 0 , used_watch_id_max
print *,'stopwatch:', id, time_total(id)
end do
end subroutine stopwatch__print
subroutine stopwatch__strt(id)
integer, intent(in) :: id
logical :: firstcall = .true.
if (firstcall) then
time_total(:) = 0.0_DP
firstcall = .false.
end if
if (id>used_watch_id_max) used_watch_id_max = id
call cpu_time(time_start_saved(id))
end subroutine stopwatch__strt
subroutine stopwatch__stop(id)
integer, intent(in) :: id
real(SP) :: time_now, elapsed
call cpu_time(time_now)
elapsed = time_now - time_start_saved(id)
time_total(id) = time_total(id) + elapsed
end subroutine stopwatch__stop
end module stopwatch
program thermal_diffusion_decomp2d_hybrid
use constants
use parallel
use temperature
use stopwatch
implicit none
integer :: loop
call stopwatch__strt(0) ! プログラム全体の実行時間
call stopwatch__strt(1) ! 並列化初期化にかかる時間
call parallel__initialize
call stopwatch__stop(1)
call stopwatch__strt(2) ! 温度場初期化にかかる時間
call temperature__initialize
call stopwatch__stop(2) ! 温度場の出力にかかる時間
call temperature__output_2d_profile
call stopwatch__stop(2)
call stopwatch__strt(3) ! ヤコビ法による求解にかかる時間
do loop = 1 , LOOP_MAX
call temperature__update
end do
call stopwatch__stop(3)
call stopwatch__stop(0)
call stopwatch__print ! 結果の出力
call temperature__finalize
call parallel__finalize
end program thermal_diffusion_decomp2d_hybrid
stopwatch: 0 1.286565 stopwatch: 1 0.2393930 stopwatch: 2 4.3821335E-04 stopwatch: 3 1.046950
!=========================================================================
! thermal_diffusion_decomp2d_mpi.f90
!
! Purpose:
! To calcuate thermal equilibrium state, or the temperature
! distribution T(x,y) in a unit square, 0<=(x,y)<=1.
! Heat source is constant and uniform in the square.
! Temperature's boundary condition is fixed; T=0 on the four
! sides.
!
! Method:
! 2nd order finite difference approximation for the Poisson
! equation of the temperature,
! \nabla^2 T(x,y) + heat_source = 0.
! leads to
! T(i,j) = (T(i+1,j)+T(i-1,j)+T(i,j+1)+T(i,j-1)) / 4 &
! + heat_source*h^2/4,
! where the grid spacing, h, is same and uniform in x-
! and y-directions. Jacobi method is used to solve this.
!
! Parallelization:

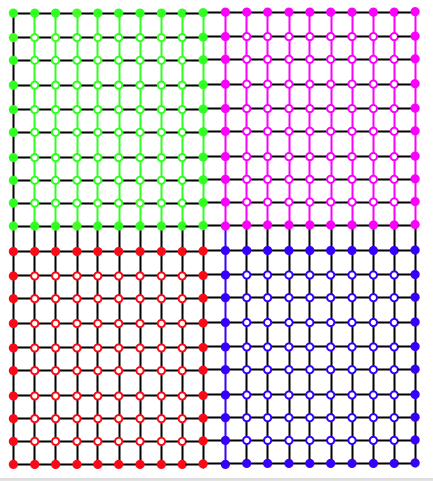

! MPI parallelization under 2-dimensional domain decomposition.
!
! Reference codes:
! - "thermal_diffusion.f90" is a companion code that is
! parallelized with a 1-D domain decomposition.
! - "sample_birdseyeview.gp" is a gnuplot script to visualize
! T(i,j) distribution in the square, produced by the routine
! temperature__output_2d_profile in this code.
!
! Coded by Akira Kageyama,
! at Kobe University,
! on 2010.07.15,
! for the Lecture Series "Computational Science" (2010).
!=========================================================================
module constants
implicit none
integer, parameter :: SP = kind(1.0)
integer, parameter :: DP = selected_real_kind(2*precision(1.0_SP))
integer, parameter :: MESH_SIZE = 1000 ! was = 61
integer, parameter :: LOOP_MAX = 10000
end module constants
module stopwatch
use constants
implicit none
private
public :: stopwatch__print, stopwatch__strt, stopwatch__stop
integer, parameter :: max_watch_id = 100
integer :: used_watch_id_max=-1
real(SP), dimension(0:max_watch_id) :: time_start_saved, time_total
contains
subroutine stopwatch__print
integer :: id
do id = 0 , used_watch_id_max
print *,'stopwatch:', id, time_total(id)
end do
end subroutine stopwatch__print
subroutine stopwatch__strt(id)
integer, intent(in) :: id
logical :: firstcall = .true.
if (firstcall) then
time_total(:) = 0.0_DP
firstcall = .false.
end if
if (id>used_watch_id_max) used_watch_id_max = id
call cpu_time(time_start_saved(id))
end subroutine stopwatch__strt
subroutine stopwatch__stop(id)
integer, intent(in) :: id
real(SP) :: time_now, elapsed
call cpu_time(time_now)
elapsed = time_now - time_start_saved(id)
time_total(id) = time_total(id) + elapsed
end subroutine stopwatch__stop
end module stopwatch
module parallel
use constants
use mpi
implicit none
private
public :: parallel__initialize, &
parallel__i_am_on_border, &
parallel__communicate, &
parallel__finalize, &
parallel__set_prof_2d, &
parallel__tellme
type ranks_
integer :: me
integer :: north, south, west, east
end type ranks_
type(ranks_) :: ranks
integer, parameter :: ndim = 2 ! 2-D domain decomposition
type process_topology_
integer :: comm
integer, dimension(ndim) :: dims
integer, dimension(ndim) :: coords
end type process_topology_
type(process_topology_) :: cart2d
integer :: nprocs
integer :: istt, iend
integer :: jstt, jend
contains
!== Private ==!
subroutine dataTransferEastward(n,sent_vect, recv_vect)
integer, intent(in) :: n
real(DP), dimension(n), intent(in) :: sent_vect
real(DP), dimension(n), intent(out) :: recv_vect
integer :: ierr
integer, dimension(MPI_STATUS_SIZE) :: status
call mpi_sendrecv(sent_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%east, &
0, &
recv_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%west, &
MPI_ANY_TAG, &
cart2d%comm, &
status, &
ierr)
end subroutine dataTransferEastward
subroutine dataTransferNorthward(n,sent_vect, recv_vect)
integer, intent(in) :: n
real(DP), dimension(n), intent(in) :: sent_vect
real(DP), dimension(n), intent(out) :: recv_vect
integer :: ierr
integer, dimension(MPI_STATUS_SIZE) :: status
call mpi_sendrecv(sent_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%north, &
0, &
recv_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%south, &
MPI_ANY_TAG, &
cart2d%comm, &
status, &
ierr)
end subroutine dataTransferNorthward
subroutine dataTransferSouthward(n,sent_vect, recv_vect)
integer, intent(in) :: n
real(DP), dimension(n), intent(in) :: sent_vect
real(DP), dimension(n), intent(out) :: recv_vect
integer :: ierr
integer, dimension(MPI_STATUS_SIZE) :: status
call mpi_sendrecv(sent_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%south, &
0, &
recv_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%north, &
MPI_ANY_TAG, &
cart2d%comm, &
status, &
ierr)
end subroutine dataTransferSouthward
subroutine dataTransferWestward(n,sent_vect, recv_vect)
integer, intent(in) :: n
real(DP), dimension(n), intent(in) :: sent_vect
real(DP), dimension(n), intent(out) :: recv_vect
integer :: ierr
integer, dimension(MPI_STATUS_SIZE) :: status
call mpi_sendrecv(sent_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%west, &
0, &
recv_vect, &
n, &
MPI_DOUBLE_PRECISION, &
ranks%east, &
MPI_ANY_TAG, &
cart2d%comm, &
status, &
ierr)
end subroutine dataTransferWestward
!== Public ==!
subroutine parallel__communicate(ism1,iep1,jsm1,jep1,field)
integer, intent(in) :: ism1, iep1, jsm1, jep1
real(DP), dimension(ism1:iep1,jsm1:jep1), intent(inout) :: field
integer :: ierr
integer, dimension(MPI_STATUS_SIZE) :: status
integer :: i, j, istt, iend, jstt, jend, isize, jsize
real(DP), dimension(MESH_SIZE+2) :: sent_vect, recv_vect
! real(DP), dimension(:), allocatable :: sent_vect, recv_vect
istt = ism1 + 1
iend = iep1 - 1
jstt = jsm1 + 1
jend = jep1 - 1
isize = iep1 - ism1 + 1
! allocate(sent_vect(isize),recv_vect(isize))
sent_vect(1:isize) = field(ism1:iep1,jend)
call dataTransferNorthward(isize,sent_vect,recv_vect)
field(ism1:iep1,jsm1) = recv_vect(1:isize)
sent_vect(1:isize) = field(ism1:iep1,jstt)
call dataTransferSouthward(isize,sent_vect,recv_vect)
field(ism1:iep1,jep1) = recv_vect(1:isize)
! deallocate(sent_vect,recv_vect)
jsize = jend - jstt + 1
! allocate(sent_vect(jsize),recv_vect(jsize))
sent_vect(1:jsize) = field(iend,jstt:jend)
call dataTransferEastward(jsize,sent_vect,recv_vect)
field(ism1,jstt:jend) = recv_vect(1:jsize)
sent_vect(1:jsize) = field(istt,jstt:jend)
call dataTransferWestward(jsize,sent_vect,recv_vect)
field(iep1,jstt:jend) = recv_vect(1:jsize)
! deallocate(sent_vect,recv_vect)
end subroutine parallel__communicate
subroutine parallel__finalize
integer :: ierr
call mpi_finalize(ierr)
end subroutine parallel__finalize
function parallel__i_am_on_border(which) result(answer)
character(len=*), intent(in) :: which
logical :: answer
answer = .false.
if ( which=='west' .and.cart2d%coords(1)==0 ) answer = .true.
if ( which=='east' .and.cart2d%coords(1)==cart2d%dims(1)-1 ) answer = .true.
if ( which=='south'.and.cart2d%coords(2)==0 ) answer = .true.
if ( which=='north'.and.cart2d%coords(2)==cart2d%dims(2)-1 ) answer = .true.
end function parallel__i_am_on_border
subroutine parallel__initialize
logical, dimension(ndim) :: is_periodic
integer :: ierr
logical :: reorder
call mpi_init(ierr)
call mpi_comm_size(MPI_COMM_WORLD, nprocs, ierr)
cart2d%dims(:) = 0 ! required by mpi_dims_create
call mpi_dims_create(nprocs, ndim, cart2d%dims, ierr)
is_periodic(1) = .false.
is_periodic(2) = .false.
reorder = .true.
call mpi_cart_create(MPI_COMM_WORLD, ndim, cart2d%dims, &
is_periodic, reorder, cart2d%comm, ierr)
call mpi_comm_rank (cart2d%comm, ranks%me, ierr)
call mpi_cart_shift(cart2d%comm, 0, 1, &
ranks%west, ranks%east, ierr)
call mpi_cart_shift(cart2d%comm, 1, 1, &
ranks%south, ranks%north, ierr)
call mpi_cart_coords(cart2d%comm, ranks%me, 2, cart2d%coords, ierr)
print *,' dims(1) = ', cart2d%dims(1)
print *,' dims(2) = ', cart2d%dims(2)
print *,' coords(1) = ', cart2d%coords(1)
print *,' coords(2) = ', cart2d%coords(2)
istt = MESH_SIZE * cart2d%coords(1) / cart2d%dims(1) + 1
iend = MESH_SIZE * (cart2d%coords(1)+1) / cart2d%dims(1)
jstt = MESH_SIZE * cart2d%coords(2) / cart2d%dims(2) + 1
jend = MESH_SIZE * (cart2d%coords(2)+1) / cart2d%dims(2)
print *,' nprocs = ', nprocs
print *,' ranks%me = ', ranks%me
print *,' istt = ', istt, ' iend = ', iend
print *,' jstt = ', jstt, ' jend = ', jend
print *,' north = ', ranks%north
print *,' south = ', ranks%south
print *,' west = ', ranks%west
print *,' east = ', ranks%east
print *,' i_am_on_border("west") = ', parallel__i_am_on_border("west")
print *,' i_am_on_border("east") = ', parallel__i_am_on_border("east")
print *,' i_am_on_border("north") = ', parallel__i_am_on_border("north")
print *,' i_am_on_border("south") = ', parallel__i_am_on_border("south")
end subroutine parallel__initialize
function parallel__set_prof_2d(ism1,iep1, &
jsm1,jep1, &
istt_,iend_, &
jstt_,jend_, &
myprof) result(prof_2d)
integer, intent(in) :: ism1
integer, intent(in) :: iep1
integer, intent(in) :: jsm1
integer, intent(in) :: jep1
integer, intent(in) :: istt_
integer, intent(in) :: iend_
integer, intent(in) :: jstt_
integer, intent(in) :: jend_
real(DP), dimension(ism1:iep1,jsm1:jep1), intent(in) :: myprof
real(DP), dimension(0:MESH_SIZE+1,0:MESH_SIZE+1) :: prof_2d
real(DP), dimension(0:MESH_SIZE+1,0:MESH_SIZE+1) :: work
integer :: ierr
integer :: meshsize_p1_sq = (MESH_SIZE+1)**2
work(:,:) = 0.0_DP
work(istt_:iend_,jstt_:jend_) = myprof(istt_:iend_,jstt_:jend_)
call mpi_allreduce(work(1,1), & ! source
prof_2d(1,1), & ! target
meshsize_p1_sq, &
MPI_DOUBLE_PRECISION, &
MPI_SUM, &
cart2d%comm, &
ierr)
end function parallel__set_prof_2d
function parallel__tellme(which) result(val)
character(len=*), intent(in) :: which
integer :: val
select case (which)
case ('rank_east')
val = ranks%east
case ('rank_north')
val = ranks%north
case ('rank_south')
val = ranks%south
case ('rank_west')
val = ranks%west
case ('rank_me')
val = ranks%me
case ('iend')
val = iend
case ('istt')
val = istt
case ('jend')
val = jend
case ('jstt')
val = jstt
case ('nprocs')
val = nprocs
case default
print *, 'Bad arg in parallel__tellme.'
call parallel__finalize
stop
end select
end function parallel__tellme
end module parallel
module temperature
use constants
use stopwatch
use parallel
implicit none
private
public :: temperature__initialize, &
temperature__finalize, &
temperature__output_2d_profile, &
temperature__update
real(DP), allocatable, dimension(:,:) :: temp
real(DP), allocatable, dimension(:,:) :: work
real(DP), parameter :: SIDE = 1.0_DP
real(DP) :: h = SIDE / (MESH_SIZE+1)
real(DP) :: heat
integer :: istt, iend, jstt, jend
integer :: myrank, north, south, west, east, nprocs
contains
!=== Private ===
subroutine boundary_condition
if ( parallel__i_am_on_border('west') ) temp( 0,jstt-1:jend+1) = 0.0_DP
if ( parallel__i_am_on_border('east') ) temp( MESH_SIZE+1,jstt-1:jend+1) = 0.0_DP
if ( parallel__i_am_on_border('north') ) temp(istt-1:iend+1, MESH_SIZE+1) = 0.0_DP
if ( parallel__i_am_on_border('south') ) temp(istt-1:iend+1, 0) = 0.0_DP
end subroutine boundary_condition
!=== Public ===
subroutine temperature__initialize
real(DP) :: heat_source = 4.0
istt = parallel__tellme('istt')
iend = parallel__tellme('iend')
jstt = parallel__tellme('jstt')
jend = parallel__tellme('jend')
myrank = parallel__tellme('rank_me')
north = parallel__tellme('rank_north')
south = parallel__tellme('rank_south')
east = parallel__tellme('rank_east')
west = parallel__tellme('rank_west')
nprocs = parallel__tellme('nprocs')
allocate(temp(istt-1:iend+1,jstt-1:jend+1))
allocate(work( istt:iend , jstt:jend) )
heat = (heat_source/4) * h * h
temp(:,:) = 0.0_DP ! initial condition
end subroutine temperature__initialize
subroutine temperature__finalize
deallocate(work,temp)
end subroutine temperature__finalize
subroutine temperature__output_2d_profile
real(DP), dimension(0:MESH_SIZE+1, &
0:MESH_SIZE+1) :: prof
integer :: counter = 0 ! saved
integer :: ierr ! use for MPI
integer :: istt_, iend_, jstt_, jend_
character(len=4) :: serial_num ! put on file name
character(len=*), parameter :: base = "../data/temp.2d."
integer :: i, j
call set_istt_and_iend
call set_jstt_and_jend
write(serial_num,'(i4.4)') counter
prof(:,:) = parallel__set_prof_2d(istt-1, iend+1, &
jstt-1, jend+1, &
istt_, iend_, &
jstt_, jend_, &
temp)
if ( myrank==0 ) then
open(10,file=base//serial_num)
do j = 0 , MESH_SIZE+1
do i = 0 , MESH_SIZE+1
write(10,*) i, j, prof(i,j)
end do
write(10,*)' ' ! gnuplot requires a blank line here.
end do
close(10)
end if
counter = counter + 1
contains
subroutine set_istt_and_iend
istt_ = istt
iend_ = iend
if ( parallel__i_am_on_border('west') ) then
istt_ = 0
end if
if ( parallel__i_am_on_border('east') ) then
iend_ = MESH_SIZE+1
end if
end subroutine set_istt_and_iend
subroutine set_jstt_and_jend
jstt_ = jstt
jend_ = jend
if ( parallel__i_am_on_border('south') ) then
jstt_ = 0
end if
if ( parallel__i_am_on_border('north') ) then
jend_ = MESH_SIZE+1
end if
end subroutine set_jstt_and_jend
end subroutine temperature__output_2d_profile
subroutine temperature__update
integer :: i, j
call stopwatch__strt(8)
call stopwatch__strt(4)
call parallel__communicate(istt-1,iend+1,jstt-1,jend+1,temp)
call stopwatch__stop(4)
call stopwatch__strt(5)
call boundary_condition
call stopwatch__stop(5)
call stopwatch__strt(6)
do j = jstt , jend
do i = istt , iend
work(i,j) = (temp(i-1,j)+temp(i+1,j)+temp(i,j-1)+temp(i,j+1))*0.25_DP &
+ heat
end do
end do
call stopwatch__stop(6)
call stopwatch__strt(7)
temp(istt:iend,jstt:jend) = work(istt:iend,jstt:jend)
call stopwatch__stop(7)
call stopwatch__stop(8)
end subroutine temperature__update
end module temperature
program thermal_diffusion_decomp2d_mpi
use constants
use parallel
use temperature
use stopwatch
implicit none
integer :: loop
call stopwatch__strt(0)
call stopwatch__strt(1)
call parallel__initialize
call stopwatch__stop(1)
call stopwatch__strt(2)
call temperature__initialize
call stopwatch__stop(2)
!-- call temperature__output_2d_profile
call stopwatch__stop(2)
call stopwatch__strt(3)
do loop = 1 , LOOP_MAX
call temperature__update
!-- if ( mod(loop,100)==0 ) call temperature__output_2d_profile
end do
call stopwatch__stop(3)
call stopwatch__stop(0)
call stopwatch__print
call temperature__finalize
call parallel__finalize
end program thermal_diffusion_decomp2d_mpi
#!/bin/sh
#PBS -l cputim_job=00:05:00
#PBS -l memsz_job=2gb
#PBS -l cpunum_job=1
#PBS -T vltmpi
#PBS -b 1
#PBS -q PCL-A
cd /home/users/your_directory/src
mpirun_rsh -np 1 ${NQSII_MPIOPTS} ./a.out
[0] stopwatch: 0 156.9908 # 全実行時間 （約157秒） [0] stopwatch: 1 6.5398932E-02 # 並列初期化にかかった時間 [0] stopwatch: 2 1.7432213E-02 # 温度場初期化にかかった時間 [0] stopwatch: 3 156.9167 # temperature__updateにかかった時間 [0] stopwatch: 4 0.8027854 # MPI通信にかかった時間 [0] stopwatch: 5 0.2311089 # 境界条件の設定にかかった時間 [0] stopwatch: 6 90.23702 # ヤコビ法のメインループにかかった時間 [0] stopwatch: 7 65.61881 # 作業配列を温度場にコピーするのにかかった時間 [0] stopwatch: 8 156.9118 # temperature__updateにかかった時間
[0] stopwatch: 0 15.07710 # 全実行時間 （約15秒） [0] stopwatch: 1 0.3075731 # 並列初期化にかかった時間 [0] stopwatch: 2 1.6336441E-03 # 温度場初期化にかかった時間 [0] stopwatch: 3 14.76871 # temperature__updateにかかった時間 [0] stopwatch: 4 0.6982038 # MPI通信にかかった時間 [0] stopwatch: 5 2.9568195E-02 # 境界条件の設定にかかった時間 [0] stopwatch: 6 8.654255 # ヤコビ法のメインループにかかった時間 [0] stopwatch: 7 5.371924 # 作業配列を温度場にコピーするのにかかった時間 [0] stopwatch: 8 14.76621 # temperature__updateにかかった時間
[0] stopwatch: 0 3.183086 # 全実行時間 （約3.2秒） [0] stopwatch: 1 0.4711061 # 並列初期化にかかった時間 [0] stopwatch: 2 3.3569336E-04 # 温度場初期化にかかった時間 [0] stopwatch: 3 2.711810 # temperature__updateにかかった時間 [0] stopwatch: 4 0.4736750 # MPI通信にかかった時間 [0] stopwatch: 5 1.4100790E-02 # 境界条件の設定にかかった時間 [0] stopwatch: 6 1.366545 # ヤコビ法のメインループにかかった時間 [0] stopwatch: 7 0.8431044 # 作業配列を温度場にコピーするのにかかった時間 [0] stopwatch: 8 2.709322 # temperature__updateにかかった時間

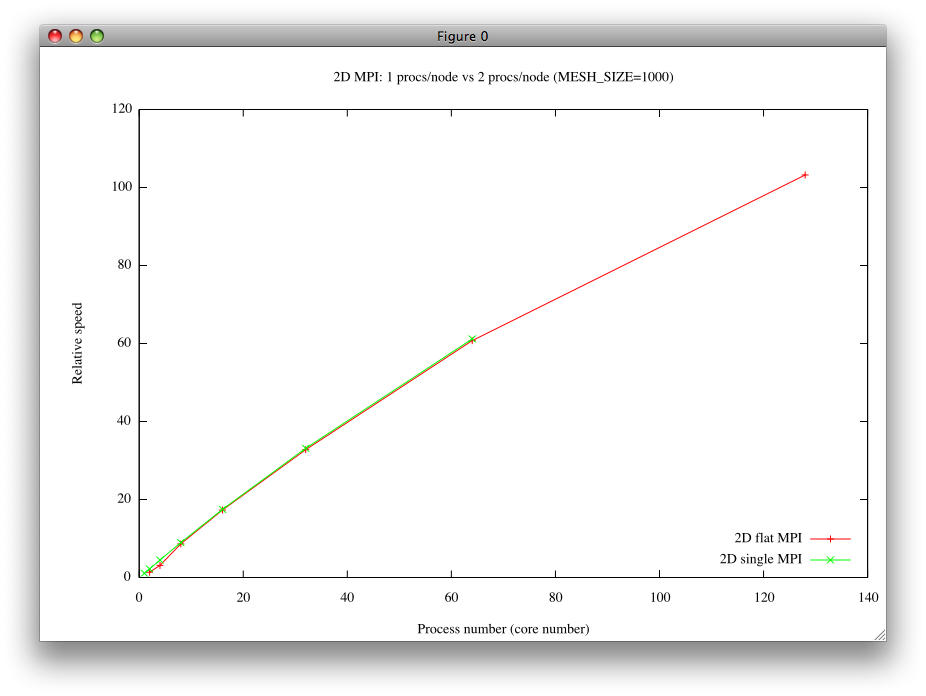

#!/bin/sh ・ ・ #PBS -l cpunum_job=1 ← １ノードに１つのコアを使う。 ・ ・ ・
#!/bin/sh
#PBS -l cputim_job=00:05:00
#PBS -l memsz_job=2gb
#PBS -l cpunum_job=2
#PBS -T vltmpi
#PBS -b 64
#PBS -q PCL-A
cd /home/users/yourdirectory
mpirun_rsh -np 128 ${NQSII_MPIOPTS} ./a.out
[0] stopwatch: 0 2.393928 # 全実行時間 （約2.4秒） [0] stopwatch: 1 0.7410951 # 並列初期化にかかった時間 [0] stopwatch: 2 2.4318695E-04 # 温度場初期化にかかった時間 [0] stopwatch: 3 1.652695 # temperature__updateにかかった時間 [0] stopwatch: 4 0.5054324 # MPI通信にかかった時間 [0] stopwatch: 5 1.3842821E-02 # 境界条件の設定にかかった時間 [0] stopwatch: 6 0.6929536 # ヤコビ法のメインループにかかった時間 [0] stopwatch: 7 0.4263895 # 作業配列を温度場にコピーするのにかかった時間 [0] stopwatch: 8 1.650211 # temperature__updateにかかった時間

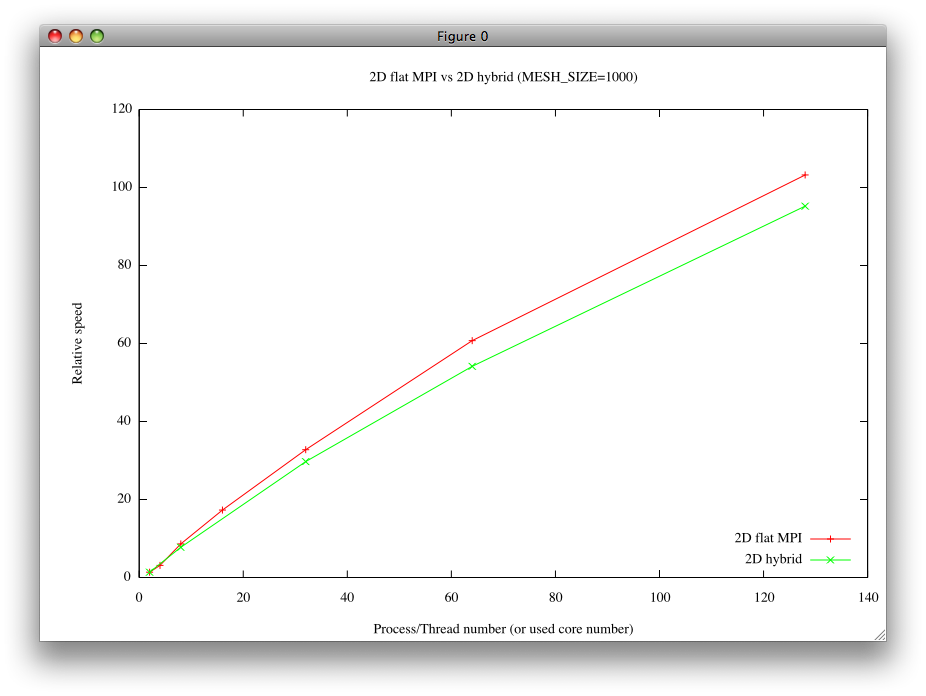

diff thermal_diffusion_decomp2d_mpi.f90 thermal_diffusion_decomp2d_hybrid.f90
をとってみると、その結果は以下の通りである（本質的でない差分は削除した）：
380a380 > use omp_lib 496a497 > !$omp parallel do 502a504 > !$omp end parallel do 505c507,514 < temp(istt:iend,jstt:jend) = work(istt:iend,jstt:jend) --- > ! temp(istt:iend,jstt:jend) = work(istt:iend,jstt:jend) > !$omp parallel do > do j = jstt , jend > do i = istt , iend > temp(i,j) = work(i,j) > end do > end do > !$omp end parallel do 513c522
#!/bin/sh
#PBS -l cputim_job=00:05:00
#PBS -l memsz_job=2gb
#PBS -l cpunum_job=1
#PBS -T vltmpi
#PBS -v OMP_NUM_THREADS=2
#PBS -b 64
#PBS -q PCL-A
cd /home/users/yourname
mpirun_rsh -np 64 ${NQSII_MPIOPTS} ./a.out
mpif90 -mp thermal_diffusion_decomp2d_hybrid.f90
[0] stopwatch: 0 2.007206 # 全実行時間 （約2.0秒） [0] stopwatch: 1 0.3776278 # 並列初期化にかかった時間 [0] stopwatch: 2 3.4689903E-04 # 温度場初期化にかかった時間 [0] stopwatch: 3 1.629401 # temperature__updateにかかった時間 [0] stopwatch: 4 0.4579115 # MPI通信にかかった時間 [0] stopwatch: 5 1.6872644E-02 # 境界条件の設定にかかった時間 [0] stopwatch: 6 0.7087350 # ヤコビ法のメインループにかかった時間 [0] stopwatch: 7 0.4316428 # 作業配列を温度場にコピーするのにかかった時間 [0] stopwatch: 8 1.626958 # temperature__updateにかかった時間
as of 2010-08-02 (月) 16:55:45 (343)
